LPG high-speed centrifugal spray dryer
Spray drying is the most widely used process in liquid forming and drying industries. It is most suitable for generating powdery and granular products from solutions, emulsion, suspensions and pumpable paste liquid raw materials. Therefore, spray drying is a very ideal process when the particle size distribution, residual moisture content, bulk density and particle shape of the finished product must meet accurate standards.
13606122988
Details

Application Overview

  Spray drying is the most widely used process in liquid forming and drying industries. It is most suitable for generating powdery and granular products from solutions, emulsion, suspensions and pumpable paste liquid raw materials. Therefore, spray drying is a very ideal process when the particle size distribution, residual moisture content, bulk density and particle shape of the finished product must meet accurate standards.


Equipment characteristics

★ The drying speed is fast, and the surface area of the material liquid greatly increases after atomization. In the hot air flow, 95% -98% of the water can be instantly evaporated, and the drying time is only 5-40 seconds. It is particularly suitable for drying heat-sensitive materials.

★ The product has good dispersibility, flowability, or solubility. As the drying process is completed in air, it can basically maintain a spherical shape similar to the liquid droplet phase, with good dispersibility, flowability, and solubility, resulting in high purity and good quality of the product.

★ The production process is simplified and the operation and control are convenient. Usually used for solutions with a moisture content of 40-60% (up to 90% for special materials), they can be dried into powder products in one go. After drying, there is no need for crushing and screening, reducing production processes and improving product purity. The product particle size, bulk density, and moisture can be adjusted within a certain range by changing operating conditions, simplifying the production process and making control and management very convenient.

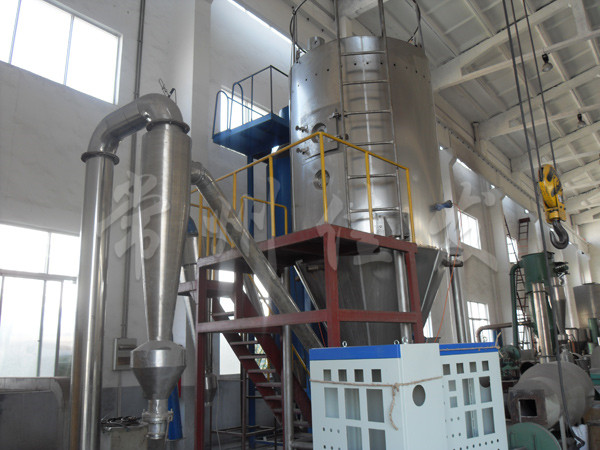

Installation reference diagram


Parameters
Specification Items
5
25
50
100
150
200-300

Inlet temperature

≤350℃

Outlet temperature

≤80℃~90℃

Evaporation capacity(kg/h)

5
25
50
100
150
200-300

Transmission form

Compressed air drive
Mechanical drive

Speed (rpm)

25000
22000
21500
18000
18000
15000

Spray disc diameter (mm)

50
120
120
120
150
180-340

Heat source

Electricity

Electricity

Electricity+steam, fuel oil, coal vapor

Electricity+Steam

Electricity+steam, fuel oil, coal vapor

Resolved by the user themselves

Electric heating power (kW)

9
45
60
81
99


Dry powder recovery rate (%)

≥95
≥95
≥95
≥95
≥95
≥95

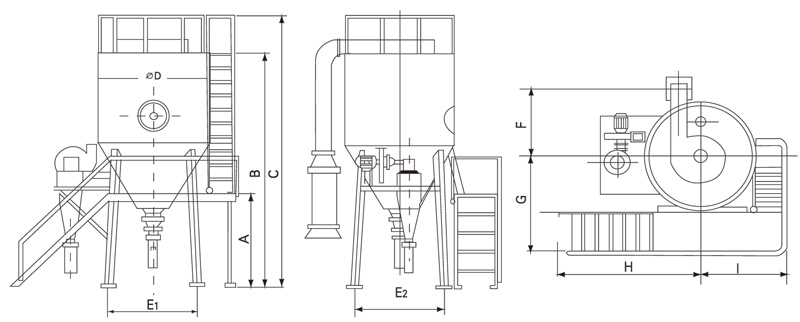

Host size

A(mm)
1000
1290
1730
2500
2800

Determine based on actual situation

B(mm)
2100
3410
4245
5300
6000
C(mm)
2300
4260
4645
6000
6700
?D(mm)
1060
1800
2133
2560
2860
E1(mm)
1050
1200
1640
2100
2180
E2(mm)
1050
1200
1640
2100
2180
F(mm)
750
1000
1250
1750
1970
G(mm)
530
1700
1750
1930
2080
H(mm)
530
1300
1800
2600
3050
l(mm)
530
1550
1600
1780
1960

All parameters are for reference only, and our company has the right to make changes based on the material situation without prior notice.

VR

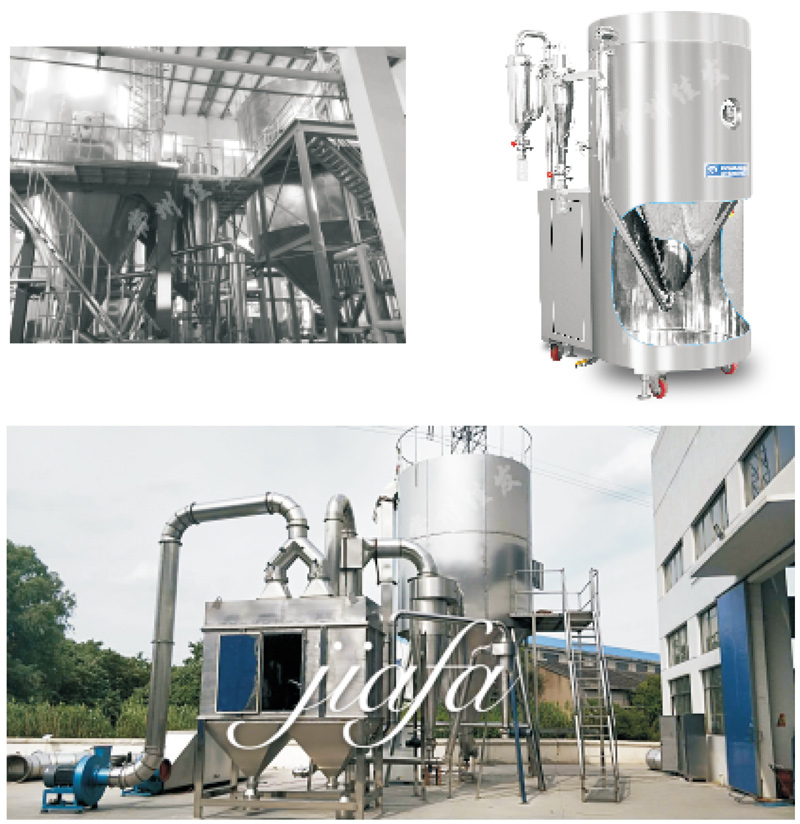

Photos
